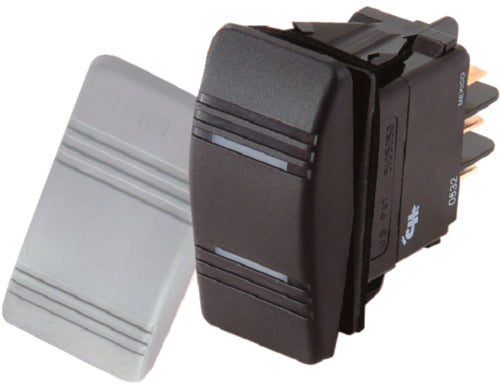

COLE HERSEE 58332-29BP SWITCH

COLE HERSEE 58332-29BP SWITCH (DISCONTINUED) SUBJECT TO STOCK ON HAND

Illuminated Rocker Switch, On-Off

Cole Hersee's general purpose Weather-Resistant Rocker Switch (58332-29-BP) is certified to IP66 and is supplied with a neoprene panel seal for increased protection against dust and prolonged spray; making it perfect for almost any marine application.

Features:

• General purpose switch suitable for many applications
• Includes (1) black and (1) gray snap-on actuator
• Weather resistant with contact area sealed against dust and prolonged spray
• Supplied with neoprene gasket / panel seal
• Silver contacts, brass blade terminals
• Snap-in panel mount fits standard 0.83" W x 1.45" L switch cut-out
  • Fits panels from 0.09" to 0.19" thick

Specifications:

• Switch type: Rocker
  • Circuitry: DPST - Double pole / single throw
  • Action: ON - OFF
• Actuator color: Black or gray
• Illumination: (1) 24V DC amber LED pilot light
• Common applications: Universal
• Max. operating amperage: 20A @ 12V DC / 15A @ 24V DC
• Blade terminals: 4
• Cut-out: 0.83" W x 1.45" L
• Regulatory:
  • Meets UL 1500 external ignition protection requirements
  • Ingress protection IP66 - dustproof / protected against heavy seas and jets of water from all directions

Note: Switches with LED pilot lights must be used at stated voltage only
